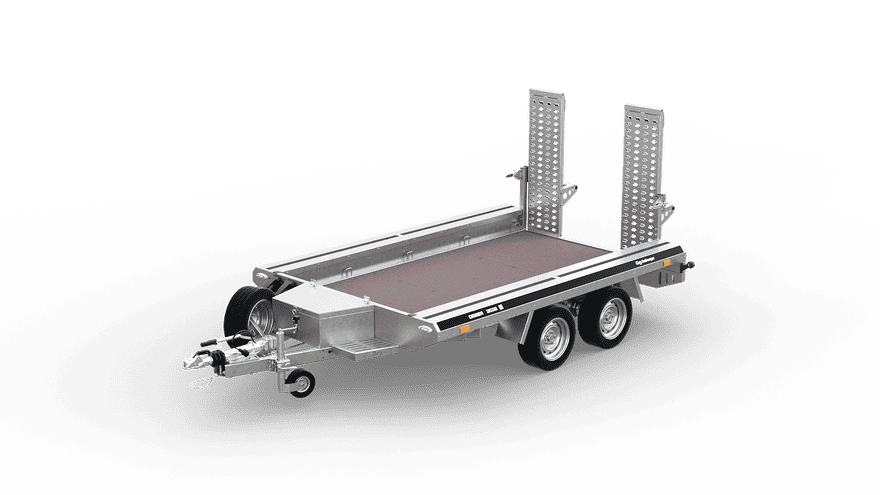

DIGGER – A Durable Trailer for Construction Machinery and Heavy Transport

Model Description

DIGGER is a specialized trailer designed for transporting excavators, skid steers, rollers, construction machinery, and heavy equipment. Its robust design, integrated ramps, and high load capacity make it an indispensable tool on any construction site and in the equipment rental industry. The DIGGER model is designed for durability, safety, and maximum functionality – even in challenging terrain.

For Whom and What?

For construction companies, heavy equipment rental companies, machine operators, earthworks, and roadworks contractors. Ideal for transporting heavy machinery such as mini-excavators, loaders, and compactors.

Design and Construction

The trailer frame is made of reinforced steel profiles, hot-dip galvanized for increased corrosion resistance. The floor is made of steel or thick, anti-slip plywood, depending on the version. Integrated, corrugated steel ramps allow for quick and safe loading of tracked and wheeled machinery. The trailer is mounted on two or three KNOTT/AL-KO axles with springs or independent suspension, ensuring stability and durability when working in demanding terrain.

Key benefits

• High load capacity – up to 2700 kg
• Steel ramps – adapted to heavy equipment
• Reinforced steel frame and axle under heavy loads
• Stable ride even on uneven surfaces and off-road
• Integrated mountings for construction equipment

Technical specifications

• GVW: up to 3500 kg
• Platform length: 3500–4000 mm
• Width: up to 1800 mm
• Load capacity: up to 2700 kg
• Axle: 2 or 3 x AL-KO/KNOTT
• Wheels: R14C or reinforced R15C

Standard and optional equipment

• Steel ramps made of checkered sheet metal
• Joining wheel and ramp lock
• Mounts and attachment points for machines
• LED lighting, rear lights protected by a steel profile
• Spare wheel (optional)
• Optional with a tarpaulin and a rack for additional equipment
