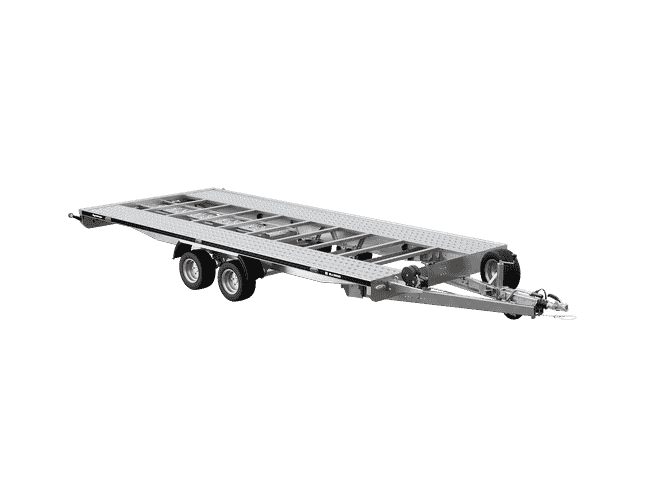

ELI – Universal Tilt Platform Transport for Everyday Use

Model Description

The ELI series are modern, lightweight trailers with a tilt platform, designed for everyday transport of equipment, garden vehicles, ATVs, and utility materials. Thanks to their low-slung design and adjustable approach angle, ELI models offer convenient loading and unloading – without the need for additional ramps. Available in a variety of lengths and axle options (2- or 3-axle), they provide great flexibility for both individual customers and professionals.

For whom and for what?

For gardening companies, equipment rental companies, and private users needing to transport light machinery, lawnmowers, ATVs, and tools. Ideal for seasonal use, field work, and everyday utility work.

Design and Construction

The ELI trailer's frame is made of high-strength structural steel, protected against corrosion by hot-dip galvanizing. The tilting platform allows for adjustable approach angle, making it easier to transport low-clearance equipment. The absence of traditional side walls makes it more compact and versatile – the transported load can extend beyond the platform within acceptable limits. Depending on the version, the ELI can be equipped with two or three axles (AL-KO or KNOTT), which improves stability and increases the total load capacity. The ramps are integrated into the structure and adapted to work in more difficult terrain conditions.

Key benefits

• Tilting platform – convenient loading without a ramp
• Available in many lengths and axles – tailored to your needs
• Low design – safe transport of wheeled equipment
• Anti-corrosion protection – long service life
• Integrated mountings and transport handles

Technical specifications

• GVW: up to 2700–3500 kg (depending on the version)
• Available platform lengths: from 3000 to 4500 mm
• Width: 1500–1800 mm
• Available in 2- or 3-axle versions (AL-KO/KNOTT)
• Wheels: R13C or R14C

Standard and optional equipment

• Tilting platform with manual or electric mechanism
• Integrated ramps made of corrugated steel sheet
• Adjustable support wheel
• LED lighting and electrical connectors
• Transport kit (straps, handles, wheel chocks)
• Spare wheel with mounting (optional)
• Aluminum rims (optional)
