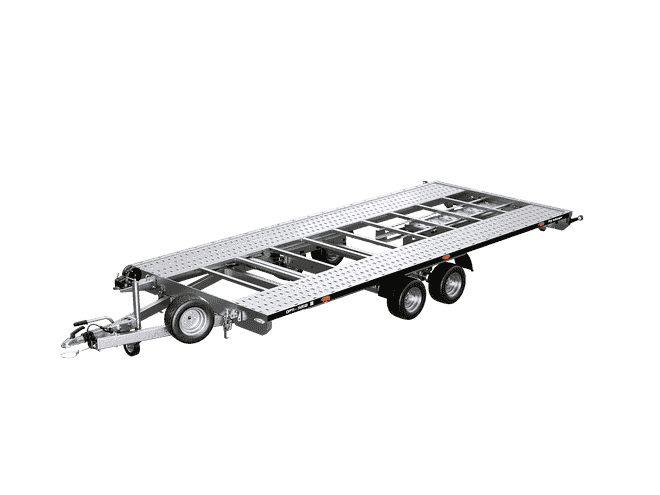

OPTI – Versatile Tipping Trailer – Universal Transport Platform

The OPTI model is a robust, tilting transport trailer that combines the functionality of a classic flatbed trailer with the added flexibility of adapting to various types of loads. With a wide range of lengths, axles, and floor options, this model is ideal for transporting cars, machinery, pallets, and construction materials.

Designed for users who need a versatile yet professional solution. The hydraulically assisted tilting system facilitates loading without the need for ramps – especially for low vehicles.

For whom and for what?

For transport, construction, logistics, rental companies, and individual customers who require maximum flexibility of use – both for work and private use.

Design and Construction

The fully galvanized steel frame, mounted on two axles, guarantees high load capacity and resistance to damage. The tilting platform operates using hydraulic cylinders, significantly simplifying operation. Available with aluminum, perforated, or waterproof plywood floors.

Thanks to the low loading angle, it is possible to transport sports cars, low-bed machines, pallets, and materials – without the need for ramps.

Key benefits

• Wide range of configurations – length, floor, axle
• Tilting platform – loading without ramps
• Solid construction – adapted to heavy loads
• Excellent maneuverability despite large dimensions
• Fully customizable

Technical specifications

• GVW: 2700–3500 kg
• Length: 4500–5500 mm
• Width: 2160 mm
• Current weight: 695–855 kg
• Load capacity: 2005–2715 kg
• Wheels: R10 / R13
• Loading angle: 7°–10°

Standard and optional equipment

• Galvanized frame, tilting platform
• Hydraulic cylinders
• Manual / electric winch
• Automatic jockey wheel
• Aluminum / plywood / sheet metal floor
• LED lighting, steel rims
• Options: aluminum rims, tarpaulin, wedges, dynamic directions
